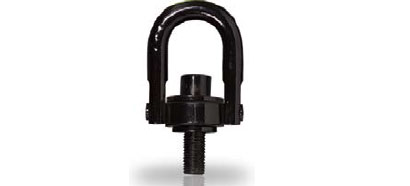

用于有吊裝角度要求的場合。
螺紋直徑：M10 ～ M64。
試驗載荷為相適應鋼絲繩索具載荷的2 倍, 破斷載荷為4 倍。
產品參數
| 額定載荷 (mm) | 破斷載荷 (t) | A (mm) | B (mm) | D (mm) | E (mm) | R (mm) | C (mm) | 自重 (kg) |
| 0.45 | 2.7 | M10 | 18 | 71 | 12 | 12 | 27 | 0.2 |
| 1 | 6 | M12 | 20 | 123 | 20 | 22 | 61 | 1.1 |
| 1.75 | 10.5 | M16 | 24 | 125 | 20 | 22 | 55 | 1.2 |
| 2.2 | 13.2 | M20 | 30 | 129 | 25 | 22 | 49 | 1.6 |
| 2.7 | 16.2 | M20 | 30 | 143 | 28 | 35 | 79 | 3.3 |
| 3.5 | 21 | M24 | 34 | 171 | 28 | 35 | 75 | 3.4 |
| 4.2 | 25.2 | M30 | 54 | 171 | 28 | 35 | 69 | 3.8 |
| 7 | 42 | M30 | 66 | 239 | 38 | 45 | 69 | 11.8 |
| 11 | 66 | M36 | 69 | 323 | 50 | 57 | 125 | 20.5 |
| 12.5 | 75 | M42 | 79 | 339 | 50 | 57 | 135 | 22.1 |
| 13.5 | 81 | M48 | 79 | 339 | 50 | 57 | 129 | 22.8 |
| 15 | 90 | M52 | 85 | 371 | 52 | 65 | 142 | 31.5 |
| 17 | 102 | M56 | 85 | 395 | 55 | 65 | 147 | 35 |
| 20 | 120 | M64 | 94 | 421 | 62 | 72 | 152 | 47.6 |
